OEM ODM Rubber Herringbone Pattern Conveyor Belt 500mm Width for Inclination Angle 0-40°

  • 1
  • 2

Model Number : EP300

Inclination angle : 0-40°

Brand Name : UCER

Composition : Belt and the pattern

MOQ : 100 meters

Delivery Time : 10-30 days

Pattern type : Herringbone pattern

National Standard : GB/T7984-2001

Certification : Enterprise credit rating AAA

Place of Origin : China

Price : Negotiable

Pattern height : 10mm

Payment Terms : L/C,D/P,T/T

Bandwidth : 500mm

Core material : EP/NN/CP

Supply Ability : 10000 per month

Color : Black

Packaging Details : Iron packing, iron frame or other

Contact Now

OEM ODM Rubber Herringbone Pattern Conveyor Belt 500mm Width

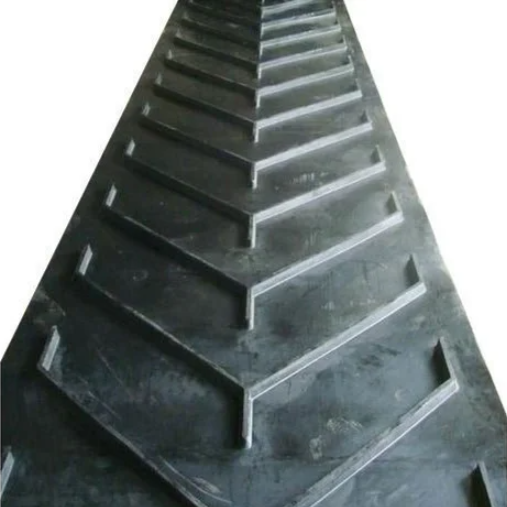

The pattern conveyor belt is an inclined conveyor belt composed of a cover rubber with a pattern-like working surface and a flat cover rubber with a non-working surface and a belt core. There are "herringbone" patterns on the belt surface that are higher than the belt body. The patterns can be open or closed. Each pattern can be divided into three types: high, medium and low.
Pattern Types
  • Herringbone Pattern: The belt surface is characterized by raised chevron profiles protruding above the belt body, available in both open and closed configurations, with each type offered in high, medium and low heights. Suitable for conveying powdered, granular and small-sized materials at an inclination angle of up to 40°, and also applicable for the conveyance of bagged materials.
  • Striped Pattern: The characteristic belt surface has striped patterns that are higher than the belt body. The patterns are divided into three types: high, medium and low. Each pattern can be divided into sparse and dense forms according to the arrangement spacing. Suitable for horizontal transportation of packages with an inclination angle of ≤30 degrees. If it is grooved, it can replace the herringbone pattern.
  • Grainy Pattern: Features grain patterns on the belt surface that are higher than the belt body or recessed into the belt body. The pits can also be made into square holes or prismatic and cloth patterns.
Product Specifications
Variety Standards and Main Indicators
Ordinary steel cord conveyor belt GB/T9770-2001
Flame-retardant steel cord conveyor belt MT668-1997
General flame-retardant steel cord conveyor belt MT668-1997
Heat-resistant steel cord conveyor belt HG2297-92
Wear-resistant steel cord conveyor belt Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt HG4-846
Cold-resistant steel cord conveyor belt Brittleness temperature -40℃
