Herringbone Pattern Black Conveyor Belt 300-800mm Width for 0-40° Inclination Angle

  • 1
  • 2

Model Number : EP100/EP150/EP200/EP250/EP300

Inclination angle : 0-40°

Brand Name : UCER

Composition : Belt and the pattern

Payment Terms : L/C,D/P,T/T

Bandwidth : 500mm

Core material : EP/NN/CP

Supply Ability : 10000 per month

Color : Black

Packaging Details : Iron packing, iron frame or other

MOQ : 100 meters

Delivery Time : 10-30 days

Pattern type : Striped pattern

Price : Negotiable

Pattern height : 15mm

National Standard : GB/T7984-2001

Certification : Enterprise credit rating AAA

Place of Origin : China

Contact Now

Herringbone Pattern Black Conveyor Belting 300-800mm Width
Product Overview

Herringbone pattern black conveyor belting designed for efficient material handling with widths ranging from 300mm to 800mm. This specialized belting prevents material slippage on inclined conveyors up to 40 degrees.

Key Features
  • Core Material: Available in ordinary cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), and other materials
  • Bandwidth: 300mm to 800mm range
  • Pattern Height: 5mm, 10mm, 15mm, 20mm options available
  • Custom Patterns: Pattern shapes can be designed according to user requirements
  • Performance: Suitable for conveying materials with inclination angles of 0-40° to prevent material sliding
Product Standards and Specifications
Variety Standards and Main Indicators
Ordinary steel cord conveyor belt GB/T9770-2001
Flame-retardant steel cord conveyor belt MT668-1997
General flame-retardant steel cord conveyor belt MT668-1997
Heat-resistant steel cord conveyor belt HG2297-92
Wear-resistant steel cord conveyor belt Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt HG4-846
Cold-resistant steel cord conveyor belt Brittleness temperature -40℃
Pattern Types

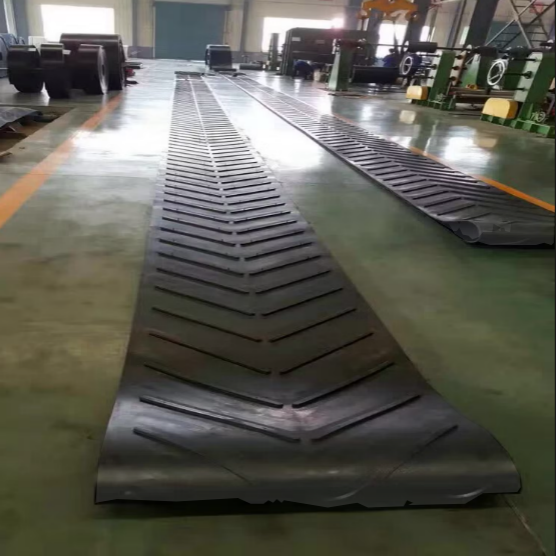

1) Herringbone Pattern

The belt surface features "herringbone" patterns higher than the belt body, available in open or closed configurations. Patterns are classified as high, medium, or low types.

Applications: Suitable for conveying powdery, granular, and small materials with inclination angles ≤40 degrees. Also effective for bagged materials.

2) Striped Pattern

Features striped patterns higher than the belt body, available in high, medium, and low types with sparse or dense arrangement spacing.

Applications: Ideal for horizontal transportation of packages with inclination angles ≤30 degrees. When grooved, can serve as an alternative to herringbone patterns.

3) Grainy Pattern

Includes grain patterns that are either raised above or recessed into the belt surface. Pits can be designed as square holes, prismatic shapes, or cloth patterns.

Construction and Composition

The pattern conveyor belt consists of two main components: the base belt and the pattern surface.
